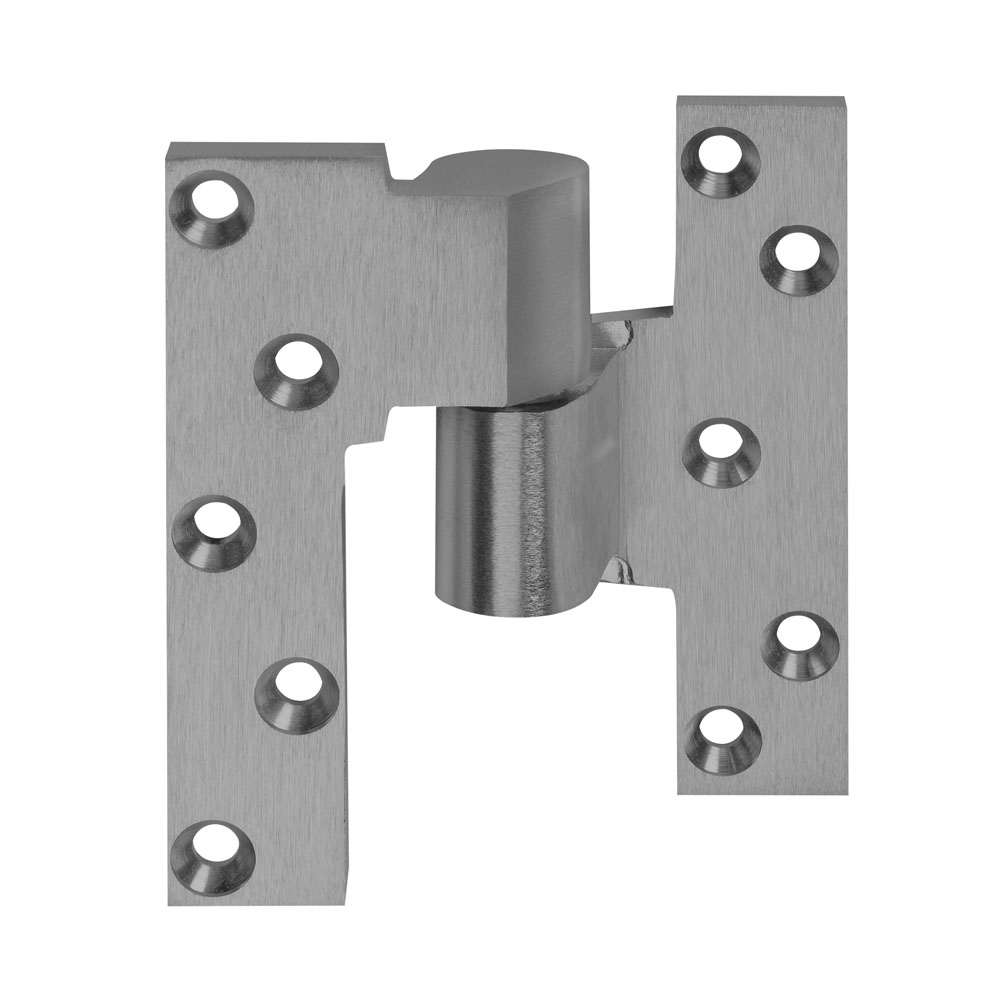

The Rixson M190-LH-626 3/4 Offset Intermediate Pivot is a Satin Chromium Plated, Left Handed, 3/4" Offset Intermediate Pivot.
- 3/4 inch Offset Intermediate Pivot
- Left-Handed
- Heavy-Duty Full Mortise
- Load-Bearing Pivot
- Used when frame condition does not allow standard top pivot
- Lateral load-bearing
- Maintains door alignment
- Aids in installing floor closers and bottom pivots
- Heavy-duty needle bearing
- Non-ferrous base metal
- 3/4" (19mm) offset standard
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot
- Door edges must be beveled in 1/8" in 2"
- Furnished with wood and machine screws
- Satin Chrome
