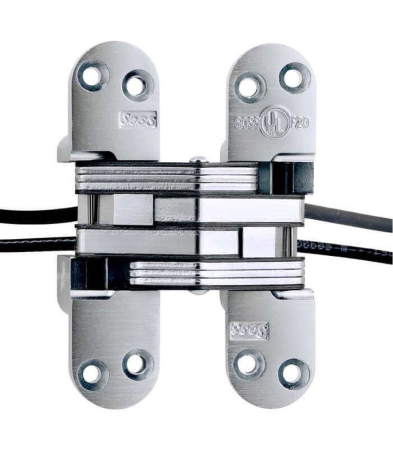

SOSS Hardware 418PTUS26D 1-3/4in 90/180 Minute Fire Rated Invisible Power Transfer Hinge Chrome
The SOSS Power Transfer Hinge gives you the ability to send power through our hinges. SOSS Invisible Hinge model #418PT is for use in wood or metal applications that are 1-3/4″ thick. The model #418PT is made of alloy steel materials. This full size door style hinge will provide superior appearance and durability. Our hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS Invisible Hinges open a full 180° and are a single action hinge.
The Underwriters Laboratories labeled the model #418 SOSS Invisible Hinge can be used on hollow metal, sheet metal, tin clad, and steel composite swinging type fire doors and frames rated up to and including 3 hours. They can also be used on wood core doors and frames rated up to 20 minutes. Additionally, they can be used on wood/plastic composite doors and frames constructed with Georgia Pacific FS 1 or FS 2 banding for a rating up to and including 90/180 minutes. Use at least one fire-rated hinge for every 20″ of door height or portion thereof, or one hinge for every 60 lbs. or fraction thereof, whichever calculation demand more hinges.
The SOSS Power Transfer Hinges are for use with four or six wire applications. Maximum wire rating is 2.5 ampere at 24 volts of direct current. For devices requiring more than 2.5 AMP, do not use SOSS Power Transfer Hinge.
Wood and machine screws are included.
Additional Information
- Application Full Sized Entry, Metal, Wood
- Min. Material Thickness 1-3/4″
- Fire Rating 90/180 Minutes
- Power Transfer 2.5A
