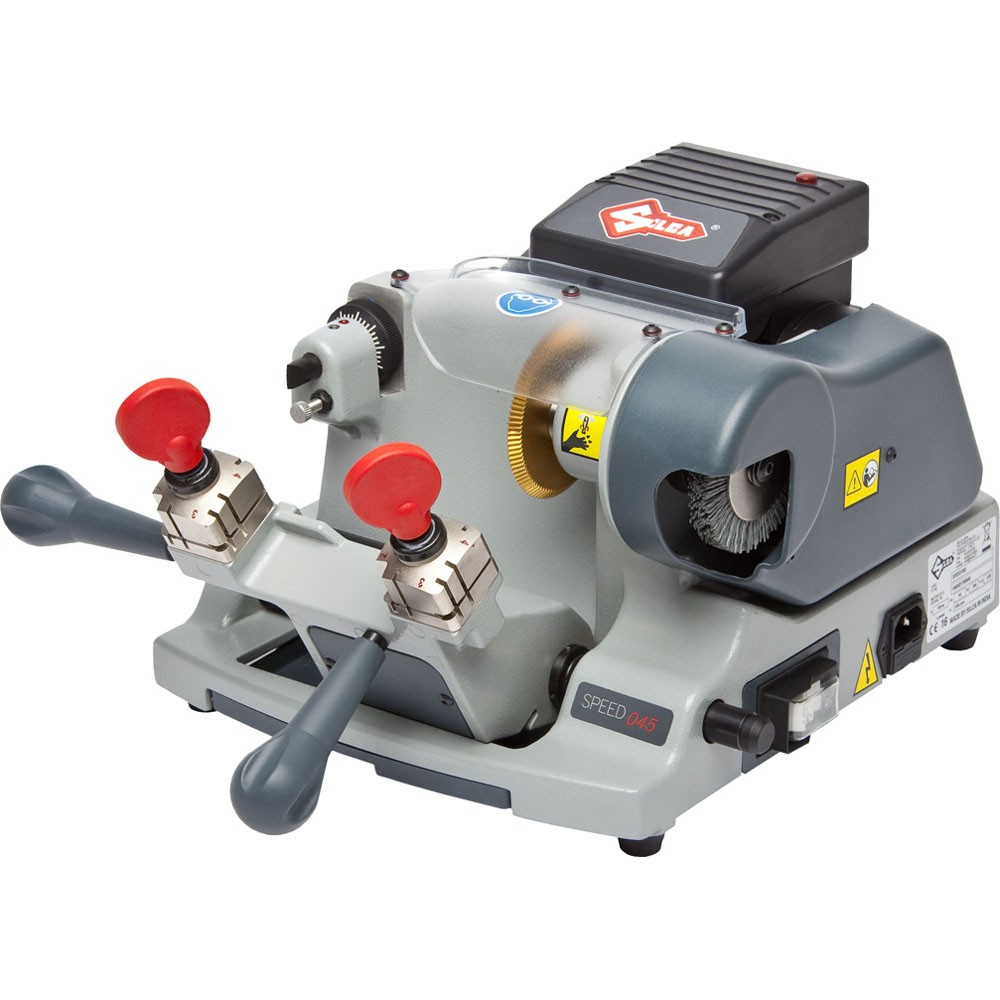

Ilco SPEED 045 Manual Key Machine

SKU # IN/SPEED045

  • Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
  • Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys,
  • Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
  • Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
  • TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
  • Nylon deburring brush
  • Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
  • Large transparent cutter safety shield contains chips and provides a storage area for accessories
  • Large drawer-type swarf (chip) tray under the carriage for easy access
  • Mounting bracket included for securing the machine to counter
  • Two year warranty
US$1,017.91

Description:

Description:

SPEED 045 Manual Operation

The ideal and yet very economical choice in a basic duplicator for any key cutting outlet. Designed with all the Speed Series convenient features and details.

Specifications:

Specifications:

Power Supply: 120V-60Hz

Maximum absorbed power: 2.8 Amp, 200 Watt

Cutter motor: single phase and speed

Movements: by ball joint on rectified carriage

Tool Speed: 1350 rpm

Carriage Runs: 1.65” (42 mm)



Cutter: TiN coated

Brush: Nylon, 5/8” (15.87 mm) bristles

Dimensions:

Width: 15.75” (400 mm)

Depth: 18.1” (460 mm)

Height: 9.8” (250 mm)

Weight: 31 lbs. (14 kg)
