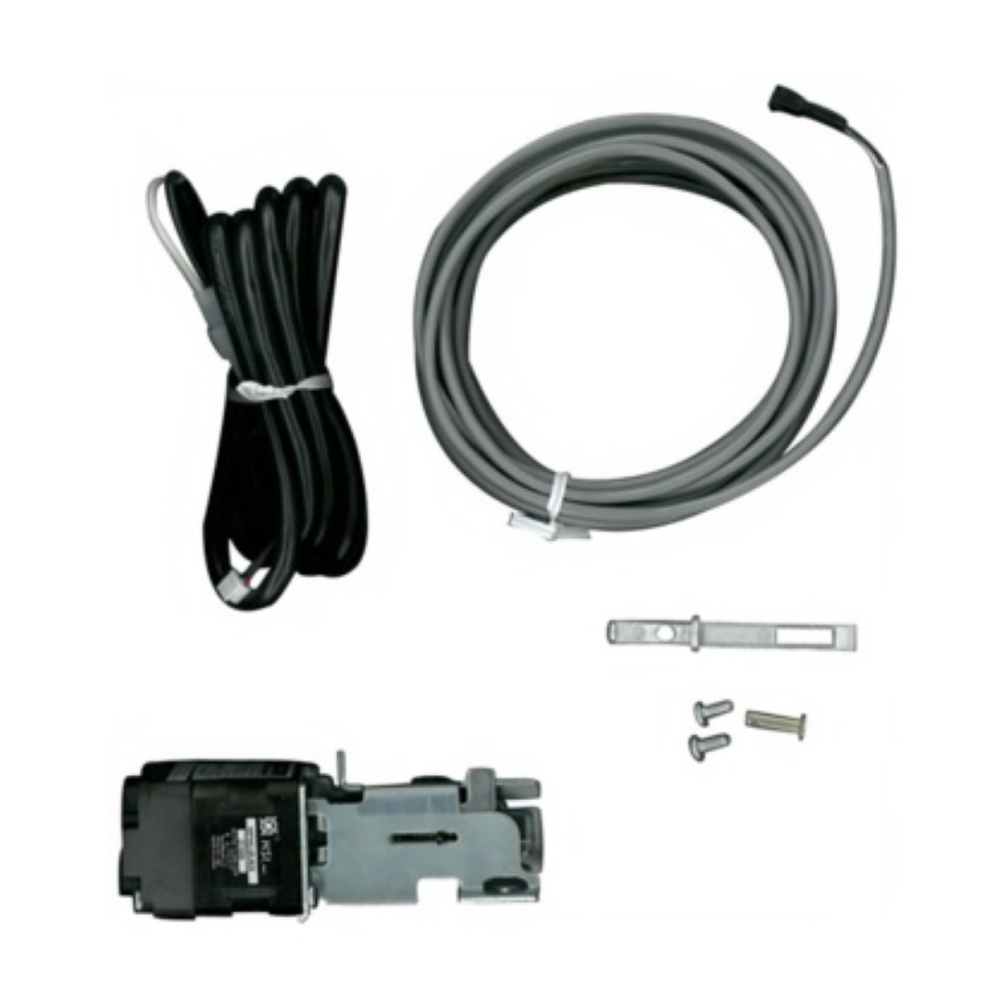

Von Duprin 114317-00 Qel Modular Conversion Kit
Von Duprin 114317-00 (QEL) Quiet Motorized Latch Retraction Modular Conversion Kit, For Use with 33A/35A/98/99 Devices
Quiet electric latch retraction (QEL) provides electronic control of an exit device for environments where limited operational noise is desired. The QEL option is Von Duprin’s solution of choice for hospitals, libraries, museums and theaters where ambient noise can be disruptive. The QEL can retract a latchbolt momentarily or on an extended, scheduled basis via access control system.
The modular conversion kit was developed to improve the flexibility, cost, and installation process without the requirement of replacing the entire baseplate assembly. The modular motor assembly provides the same functionality and fits in both 3’ device and 4’ device. The modular QEL conversion kit should be selected unless the product is currently a solenoid- driven latch retraction device (EL).
If you previously ordered 958003-00 for mechanical upgrades to latch retraction, we recommend choosing the 114317-00 modular kit
- Pushbar is pulled in electronically for quieter operation when dogged
- On-board installation and troubleshooting diagnostics built into device
- For use with 33A/35A/98/99 devices
- Requires Von Duprin power supply (not included)
- Does not include the power transfer from door to frame, the power supply, or the control operator
- UL Classified under “Accessories for Single-Point Locks and Latches and Fire Exit Hardware” (UL 10C
QEL Electrical Load:
– 24 VDC voltage
– Current Inrush – 1.0 A Inrush (0.5 sec)
– Current Holding – 0.14 A Holding
