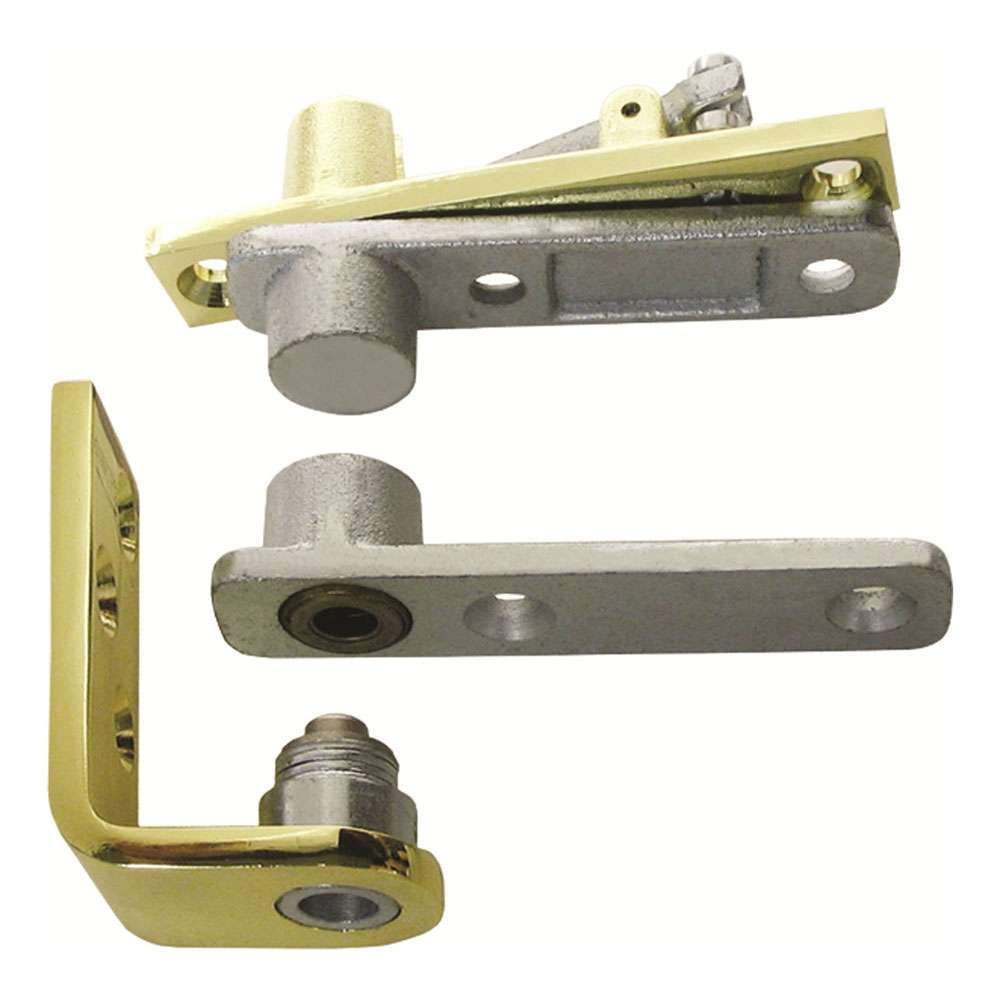

BEST Hardware DAP-3-26D DAP-3-US26D Double Acting Pivot

Double Acting Pivot

DAP–3 – (ANSI A2742) – Brass and mallable iron – standard finishes

• Heavy duty pivot assembly for commercial double acting interior doors of average frequency use, weighing up to 135 lbs. (61 Kg) and not exceeding 3’ (91 mm) in width
• For 1 3/8” (35 mm) and 1 3/4” (44 mm) thick doors
• Header plate has a walking beam design to simplify door installation
• Extra heavy 1/4” (6.35 mm) thick solid brass frame plates
• Oil impregnated bronze bearing in top door plate
• Smooth acting ball bearing assembly in bottom door plate
• For door undercuts in 1/16” (1.6 mm) increments from 3/4in (19 mm) to 1” (25 mm)
• Bottom bracket is frame mounted and must be floor supported
• The recommended positioning of the door is to inset it 1/8in (3.2 mm) from the bathroom face of the frame
